Z-47 Articulated Wireband | Z-47 Articulated Wireband Welded Edges

Z-47, Type Band are manufactured using Carbon Steel or Stainless Steel wire coils meshed into one another Lamination of the obtained weave gives a perfectly flat surface which allows free air circulation for rapid drying & Backing. Since the coils articulate into one another, Z-47 Band has a greater longitudinal flexibility to enable the band to follow the oven roller & tensioned surfaces.

Z-47 Band edges have been carefully designed in order to strengthen the sides while the band keeps entirely its flexibility without any uneven thickness.

As per requirements, the Z-47 articulated wire band is made up of 20-gauge (0.90mm),18-gauge (1.20mm,)17-gauge(1.40mm) wire of carbon steel.

Z-47 articulated wire band comes in both welded and non-welded edges. These are made using using carbon steel of stainless steel or stainless-steel wire coils meshed into one another, lamination of the obtained weave gives a perfectly flat surface which allows free air circulation for rapid drying & backing.

This wire band gets heated faster as a result there will be a notable saving on fuel cost.

Data Tempreture Weight Gauge Dia. Initial Area Ultimate Load
Carbon Steel (1.20 mm) 18 SWG H.H Wire used (Size as per International Standards) upto 600 Deg. C 800 gms. per Sq. Ft. 1.20 mm 1.23 mm Squre 100 kgf / mm Squre
U. T. S. C% Mn% Si% S% P%
75.19 kgf / mm Squre 0.19 0.69 0.13 0.024 0.020

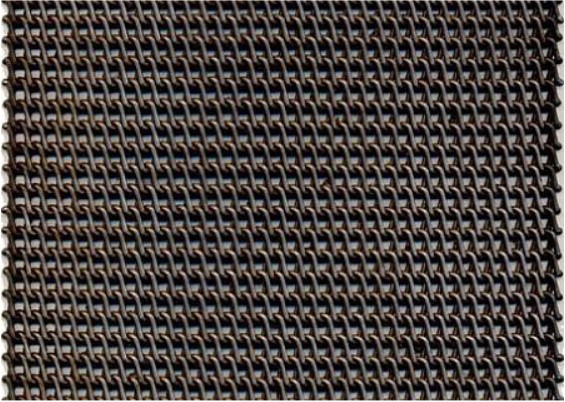

Z-47 Articulated Wireband

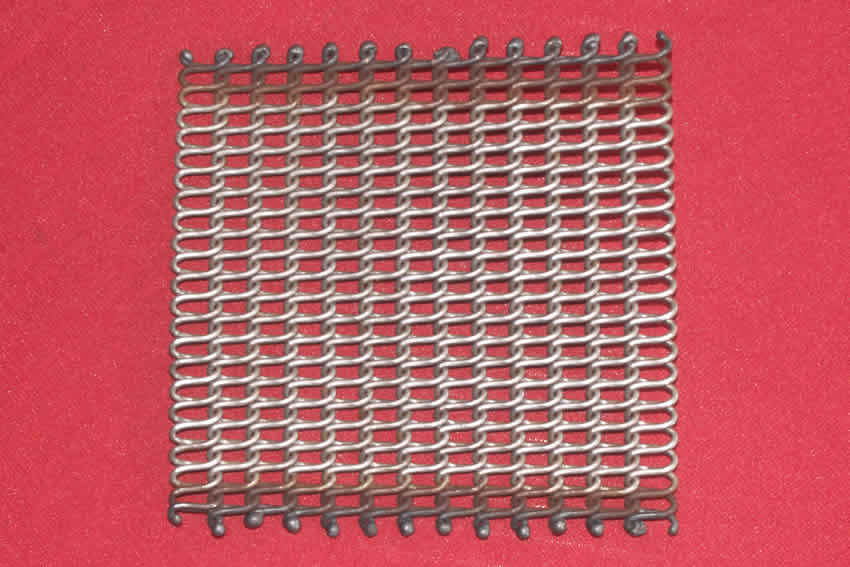

Z-47 Articulated Wireband Welded Edges

Service Application (Food Products)

Biscuit Baking Oven, bakeries Oven, Processing of Salted Cashew Nuts, Salted Peanuts, Pista, Badam etc. Also used by Papad manufacturers for LDO Fired Oven.

About the Z-47 Articulated Wireband (Using 0.90 mm) 20 SWG Wire

The Wire Band is thin and gets heated faster hence there is substaintial saving on fuel cost. The weight of the Conveyor Belt decreases by around 50% than of the convential belts thus reducing strain on the drum, Gear Box and other associated parts. (Wt. 450gm \ Sg. Ft.). There is no compromise done in terms of the lifespan of the Band, inspite of using 20 gauge wires.

Precautions

  • Precision handling required
  • Ideal upto 125 ft. oven Length
